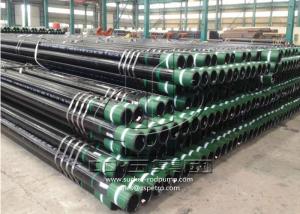

API 5CT Certified Alloy Steel Seamless Casing Pipe For Oilfield Well Drilling Project
Oil casing pipe descriptions:
Casing pipe is most often used in underground construction projects to encase or protect utility lines
from being damaged.
Once a well has been drilled, if it is to become a production well, the well must undergo completion.
While drilling a well cuts through the rock formations and allows drilling engineers to reach the reservoir
below, the raw sides of the well cannot support themselves.
Features:
1. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
2. Executive standards: API 5CT, GB, ISO11960, GOST
3. Thread connection: NU, EU,IJ
4. Length: R1, R2, R3
5. Testing: NDT etc related rules of API 5CT and 5B
6. Type:seamless pipe
Technical specification:
| Product Name | Oil casing pipe |
| Diameter | 4 1/2" - 20" |
| Steel Grade | J55/ K55, N80-1, N80Q, L80,C90, T95, P110 |
| Ends | PE, STC, LTC, BTC, EU,IEU, , Top, New |
| Certificate | API 5CT |
Mechanical properties:
| Grade | Yield Strength | Tensile Strenght | Hardness | Allowable |
| Min | Max | Min | Max | Max | Hardness |
| Psi | Mpa | Psi | Mpa | Psi | Mpa | HRC | BHN | Variation |
| J55 | 55,000 | 379 | 80,000 | 552 | 75,000 | 517 | - | - | - |
| K55 | 55,000 | 379 | 88,000 | 552 | 95,000 | 655 | - | - | - |
| N80 | 80,000 | 552 | 110,000 | 758 | 100,000 | 689 | - | - | - |
| N80-1 | 80,000 | 552 | 95,000 | 655 | 95,000 | 655 | 23 | 241 | - |
| C90 | 90,000 | 621 | 105,000 | 724 | 100,000 | 689 | 25.4 | 255 | 3 |
| C95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | - | - | - |
| T95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | 25.4 | 255 | 3 |
| P110 | 110,000 | 758 | 140,000 | 965 | 125,000 | 862 | - | - | - |
