Hinge Type Polished Bar Clamp For Subsuilage Pumps 509e40 Model 40 Bar Diameter 1-1/2 Inch

Name: Hinge Type Polished Bar Clamp For Subsuilage Pumps 509e40 Model 40 Bar Diameter 112 Inch
Brand: Zhongshi
Price: 1 USD

Brand Name : Zhongshi

Model Number : Sucker rod clamp

Certification : API 11B ,ISO ,QHSE

Place of Origin : China

MOQ : Discussion

Price : Negotiable

Payment Terms : D/P, T/T, D/A

Supply Ability : 50000 pcs per month

Delivery Time : Soonly

Packaging Details : As Required

Product : Polished Rod Clip/Clamp

Length : standard

sucker rod size : 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2"

key words : Rony rod Polished rod Clip/Clamp

Material : Stainless Steel

Structures : Single ,Two Bolts,Three Bolts

Contact Now

Product Description

Bolt Type Polished Rod Clamp with API standard

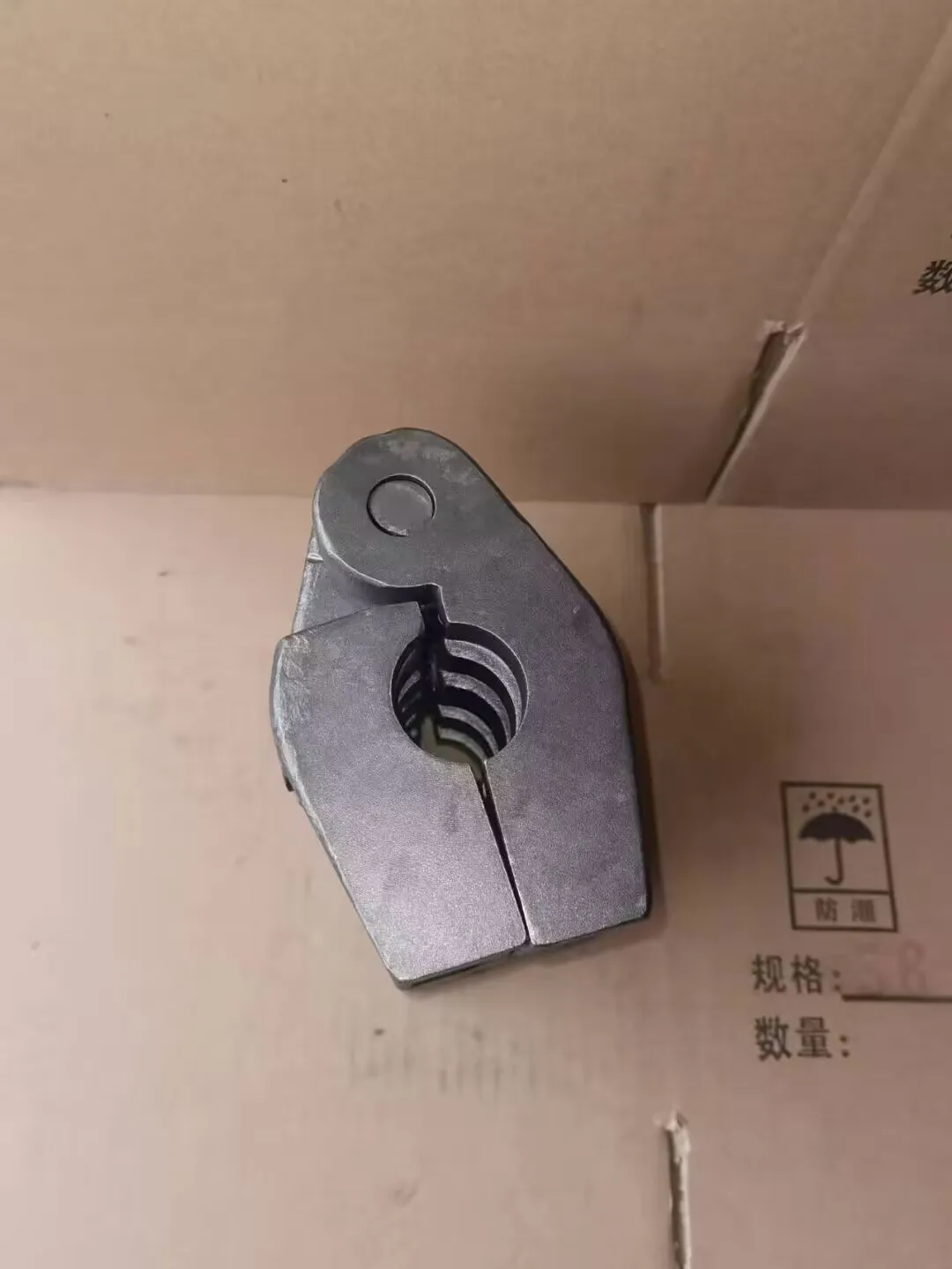

Polished rod clamp

The polished rod clamp is of butterfly structure, it is fixed on the polished rod as retaining device for the rope hanger. It
makes the pumping unit horsehead connected with polished rod through rod eye lifting device, and then the polished rod append and support the load of sucker rod string. The polished rod clamp is an important part connecting oil pump and sucker rod, it is required not only reliable, have a certain capacity, but also can not cause damage for sucker rod.

PRODUCT SPECIFICATIONS

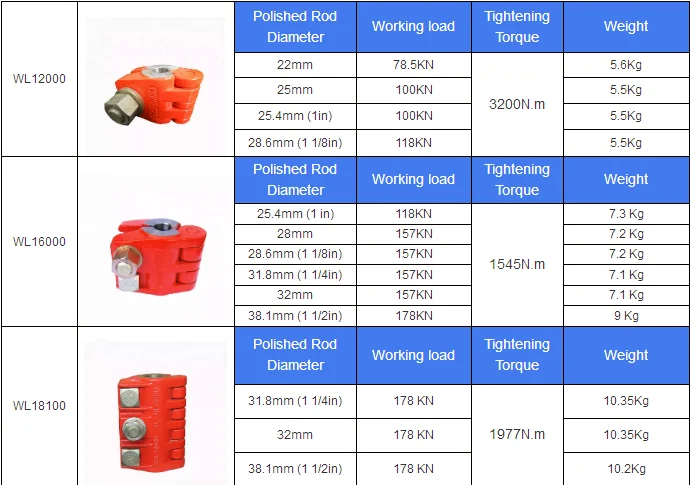

PRODUCT SPECIFICATIONS of Clamp

	Polished Rod Diameter	Working load	Tightening Torque	Weight
WL12000 single bolt	22mm	78.5KN	3200N.m	5.6Kg
	25mm	100KN		5.5Kg
	25.4mm (1in)	100KN		5.5Kg
	28.6mm (1 1/8in)	118KN		5.5Kg
WL16000 two bolt	25.4mm (1 in)	118KN	1545N.m	7.3 Kg
	28mm	157KN		7.2 Kg
	28.6mm (1 1/8in)	157KN		7.2 Kg
	31.8mm (1 1/4in)	157KN		7.1 Kg
	32mm	157KN		7.1 Kg
	38.1mm (1 1/2in)	178KN		9 Kg
WL18100 three bolt	1.8mm (1 1/4in)	178 KN	1977N.m	10.35Kg
	32mm	178 KN		10.35Kg
	38.1mm (1 1/2in)	178 KN		10.2Kg
